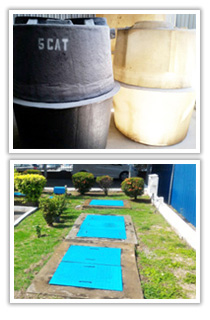

lg 5pe2IST (Individual Spetic Tank)
Cater for Population Equivalent From 5 PE to 30 PE

Model
CAT System (Compact Anaerobic Technology)

Meets
Environment Quality Control Standard 'B'
SPAN (Suruhanjaya Perkhidmatan Air Negara)
IWK (Indah Water Konsortium Sdn Bhd)

Design Data CAT-5 CAT-15 CAT-30
Population Equivalent (PE) 5 15 30
Separation Chamber (Liter) 1847 4384 9736
Effluent Standard B B B

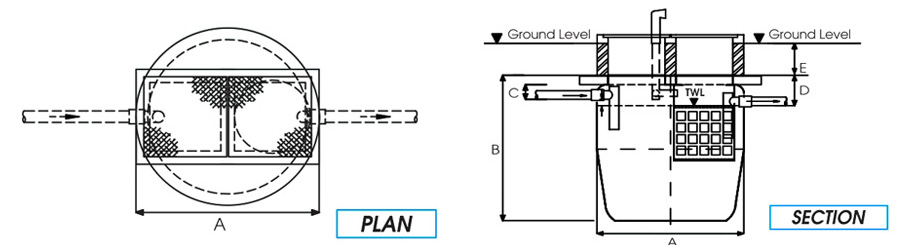

Width ( m ) Ø , A 1.55 2.10 2.60
Height ( m ) Ø , B 1.645 2.34 2.76
Vent Pipe ( m ) Ø 0.075 0.075 0.075
Inlet / Outlet Pipe ( m ) Ø 100 100 100
Inlet Pipe Level ( m ) , C 0.25 0.27 0.27
Outlet Pipe Level ( m ) , D 0.33 0.35 0.35
Difference between tank & ground level ( m ) , E Max 1m Max 1m Max 1m

lg 5pe

   Webp.net resizeimage (2)

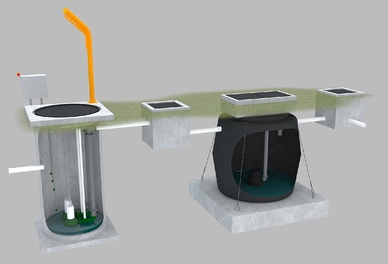

3D VIEW FOR CAT-30PE
